In agricultural operations, any unplanned downtime results in direct economic losses. When your LOVOL TE404 tractor displays an intermittent “CANErr” error together with a no-start condition, blindly replacing costly components is not the optimal solution. Based on a real technical support case in Quebec, Canada, this article walks you through a well-documented electrical and CAN communication troubleshooting procedure that meets international agricultural machinery industry standards.

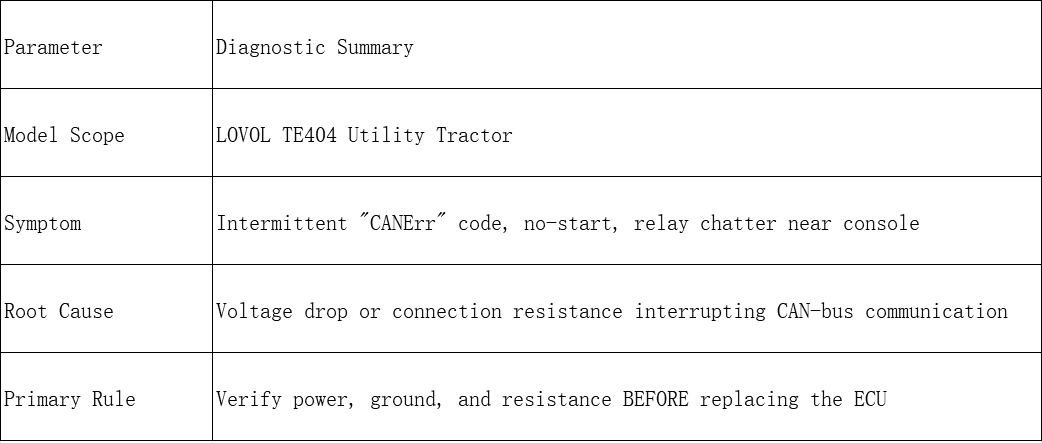

The Challenge: An Intermittent "CANErr" Failure in Quebec
The Diagnostic Process: Systematic Troubleshooting from Simple to Complex
Step 1: Battery & Load Verification Perform a standard load test on the battery. Measure both static and cranking voltage. Note: A battery that accepts a jump-start may still drop below the ECU activation threshold under load.
Step 2: Grounding & Power Connection Check Inspect the battery terminals, main disconnect switch, chassis ground, and cab ground points for looseness, oxidation, or excessive voltage drop.
Step 3: Relay & Ignition Circuit Inspection Locate the source of the console chatter. Test the main power relay, ignition relay, and ignition switch pins for voltage instability causing coil chatter.
Step 4: Harness & Connector Physical Check Inspect harness connections at the ECU, instrument cluster, and fuse block for backed-out pins.
Step 5: CAN Wiring Measurement Only after verifying normal power supply and ground connections, use a multimeter and diagnostic tool to test continuity, short-to-ground conditions and terminal resistance of CAN-H and CAN-L lines, then retrieve active and historic fault codes.
One key principle must be emphasized throughout the troubleshooting process: do not replace the dashboard or engine controller directly before completing measurements of power supply, ground and communication wiring. Premature replacement of expensive electronic components will increase the customer’s cost and may mask the actual fault point.
Service Excellence: Beyond the Repair
Efficient fault diagnosis is only the first step, while transparency and trust represent the ultimate goal of support. For overseas markets, LOVOL maintains close collaboration with regional distributors to deliver timely responses. With standardized diagnostic procedures, we not only protect your equipment assets, but also strive to cut every minute of field downtime. No matter where your farm is located, LOVOL will always be your reliable partner.
